Portable Industrial Chiller CWUP-10 for Ultrafast Laser UV Laser ±0.1°C Precision
Product Description:

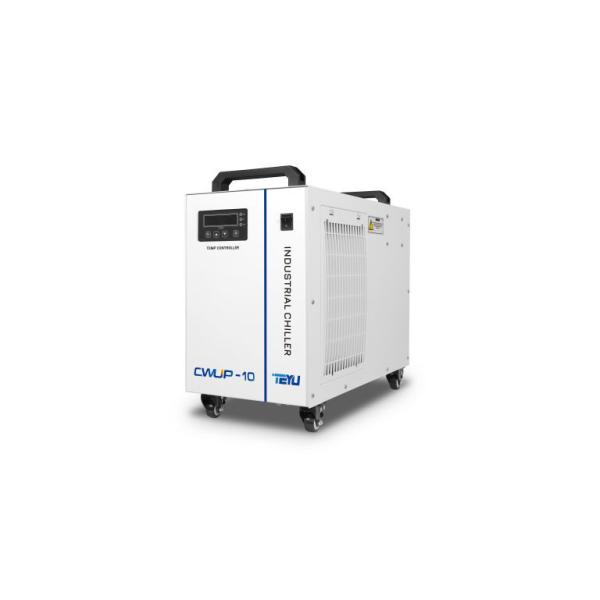

TEYU portable industrial chiller CWUP-10 is specifically designed for ultrafast laser and UV laser. It delivers superior temperature control of ±0.1°C with PID control technology. A compressor refrigeration circuit with properly designed pipeline arrangement avoids the generation of bubble to reduce the impact to the lasers. Small as its dimension of 58X29X52cm, its temperature control ability doesn’t compromise.
What makes CWUP-10 Ultrafast UV laser chiller even unique is that it incorporates the RS485 Modbus communication function, providing higher level of communication between the chiller and the laser system. Easy-to-read water level indicator, digital temperature controller and 12 built-in alarm codes, all reflect its user-friendly. Lightweight, portable and easy to maintain, making laser chiller CWUP-10 widely used in cooling ultrafast laser and UV laser.
Features:
* Low tank water level detecting
* Low water flow rate detecting
* Over water temperature detecting
* Heating of the coolant water at low ambient temperature
* 12 types of alarm codes
* Toolless maintenance of dustproof filter screen
* Quick-replaceable optional water filter
* Equipped with RS485 Modbus RTU protocol
Technical Parameters:
| Model | CWUP-10AITY | CWUP-10BITY |
| Voltage | AC 1P 220-240V | AC 1P 220~240V |
| Frequency | 50Hz | 60Hz |
| Current | 0.6~5.6A | 0.6~5.6A |
| Max. power consumption | 1.02kW | 1.04kW |
Compressor power | 0.37kW | 0.39kW |
| 0.49HP | 0.53HP |
|
Nominal cooling capacity
| 2559Btu/h |
| 0.75kW |
| 644Kcal/h |
| Refrigerant | R-134a |
| Precision | ±0.1℃ |
| Reducer | Capillary |
| Pump power | 0.09kW |
| Tank capacity | 6L |
| Inlet and outlet | Rp1/2” |
| Max. pump pressure | 2.5bar |
| Max. pump flow | 15L/min |
| N.W | 24Kg |
| G.W | 27Kg |
| Dimension | 58X29X52cm (L X W X H) |
| Package dimension | 65X36X56cm (L X W X H) |
The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.
Ventilation Distance:
