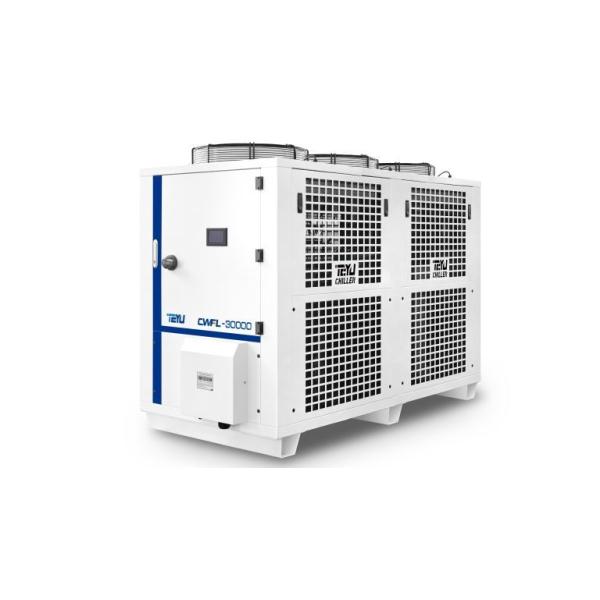

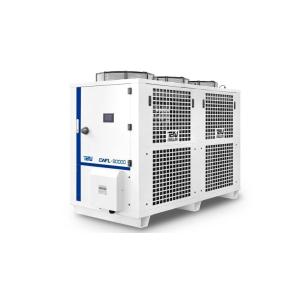

High Performance Laser Cooling Machine CWFL-30000 for 30kW Fiber Laser Equipment
Product Description:
TEYU laser cooling machine CWFL-30000 is a high-performance laser cooling unit specially designed by TEYU chiller manufacturer, which offers advanced features while also making 30kW fiber laser equipment cooling easier and more efficient. With dual refrigeration circuit, this recirculating water chiller has enough capacity to cool the fiber laser and the optics independently and simultaneously. All of the components are carefully selected to ensure reliable operation.
High-performance industrial water chiller CWFL-30000 provides an RS-485 interface for communication with the fiber laser system. A smart temperature controller is installed with advanced software to optimize the water chiller's performance. The refrigerant circuit system adopts solenoid valve bypass technology to avoid frequent start and stop of the compressor to prolong its service life. A variety of built-in alarm devices to further protect the chiller and laser equipment.
Features:
* Dual cooling circuit
* Active cooling
* Temperature stability: ±1°C
* Temperature control range: 5°C ~35°C
* Refrigerant: R-407C
* Intelligent digital control panel
* Integrated alarm functions
* Back mounted fill port and easy-to-read water level check
* RS-485 Modbus communication function
* High reliability, energy efficiency and durability
* Available in 380V
Technical Parameters:
| Model | CWFL-30000ET | CWFL-30000FT |
| Voltage | AC 3P 380V | AC 3P 380V |
| Frequency | 50Hz | 60Hz |
| Current | 10.6~61.2A | 7.9~62.5A |
| Max. power consumption | 27.62kW | 25.66kW |
| Heater power | 1800W+5400W | 1800W+10800W |
| Precision | ±1℃ |
| Reducer | Capillary |
| Pump power | 3.5kW | 5.5kW |
| Tank capacity | 250L | 330L |
| Inlet and outlet | Rp1/2”+ Rp1-1/4” | Rp1/2”+ Rp2” |
| Max. pump pressure | 8.5bar | 8bar |
| Rated flow | 10L/min+＞250L/min |
| N.W | 540Kg | 737Kg |
| G.W | 710Kg | 966Kg |
| Dimension | 207 X 96 X 146 cm (L X W X H) | 227 X 113 X 190 cm (L X W X H) |
| Package dimension | 229X 120 X 175 cm (L X W X H) | 235X 137 X 214 cm (L X W X H) |
The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.
