Efficient Stable Refrigeration Equipment for 80000W High Power Fiber Laser Cutting Welding Drilling Machine
Product Description:

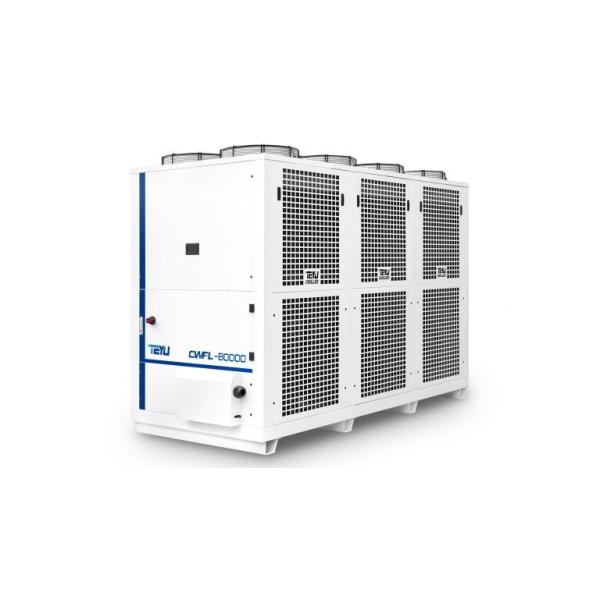

Efficient Stable Refrigeration Equipment CWFL-80000, is specially designed by TEYU Chiller Manufacturer to cool up to 80kW high power fiber laser cutting welding drilling machine, featuring high reliability, high performance and high intelligence. Its refrigerant circuit system adopts solenoid valve bypass technology to avoid the compressor's frequent start/stop to prolong its service life. All of the components are carefully selected to ensure reliable operation.
Refrigeration Equipment CWFL-80000 integrates dual cooling circuits designed for the laser and the optics, providing a dual protection effect on the laser cutting equipment, gradually optimizing energy efficiency through distinct temperature regulation during long-term operation. The design of the ModBus-485 communication adds a layer of convenience, enhancing connectivity and control for seamless operation. It also features multiple alarm functions for all-around protection for both the chiller and fiber laser machine.
Features:
* Dual cooling circuit
* Active cooling
* Temperature stability: ±1°C
* Temperature control range: 5°C ~35°C
* Refrigerant: R-407C
* Intelligent digital control panel
* Integrated alarm functions
* Back mounted fill port and easy-to-read water level check
* RS-485 Modbus communication function
* High reliability, energy efficiency and durability
* Available in 380V
Technical Parameters:
| Model | CWFL-80000ET |
| Voltage | AC 3P 380V |
| Frequency | 50Hz |
| Current | 30.2~159.5A |
| Max. power consumption | 82.59kW |
| Heater power | 12000W+5400W |
| Precision | ±1℃ |
| Reducer | Capillary |
| Pump power | 5.5kW+5.5kW+0.75kW |
| Tank capacity | 600L |
| Inlet and outlet | Rp 1/2"+Rp 2 |
| Max. pump pressure | 5.5bar+5.5bar |
| Rated flow | 10L/min+＞333L/min*2 |
| N.W | 1492Kg |
| G.W | 1859Kg |
| Dimension | 340 X 139 X 220cm(L X W X H) |
| Package dimension | 355 X 163 X 244cm(L X W X H) |
The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.
